500 Series

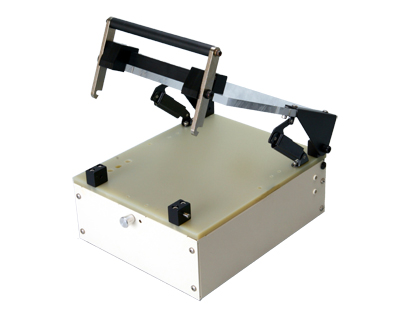

Mechanical Benchtop Fixtures

Features:

  • Hinged G-10 probe plates
  • Tooling holes for accurate drilling
  • Removable front and back panels
  • Rigid fine grain G-10 plates for flatness, strength and stability

Options:

  • Full customization available
  • Anti-static material
  • Spring-loaded nest plate
  • Safety interlocks
  • Lid-less versions available
Part Number Outside Dimensions Maximum Product
  A B C D
500-1012 10 (254) 12 (305) 6 (152) 8 (203)
500-1216 12 (305) 16 (405) 10 (254) 10 (254)
500-1620 16 (406) 20 (508) 14 (356) 14 (356)
All dimensions are shown in inches and (millimeters)
